Setup Diagram for Ford LIN Project

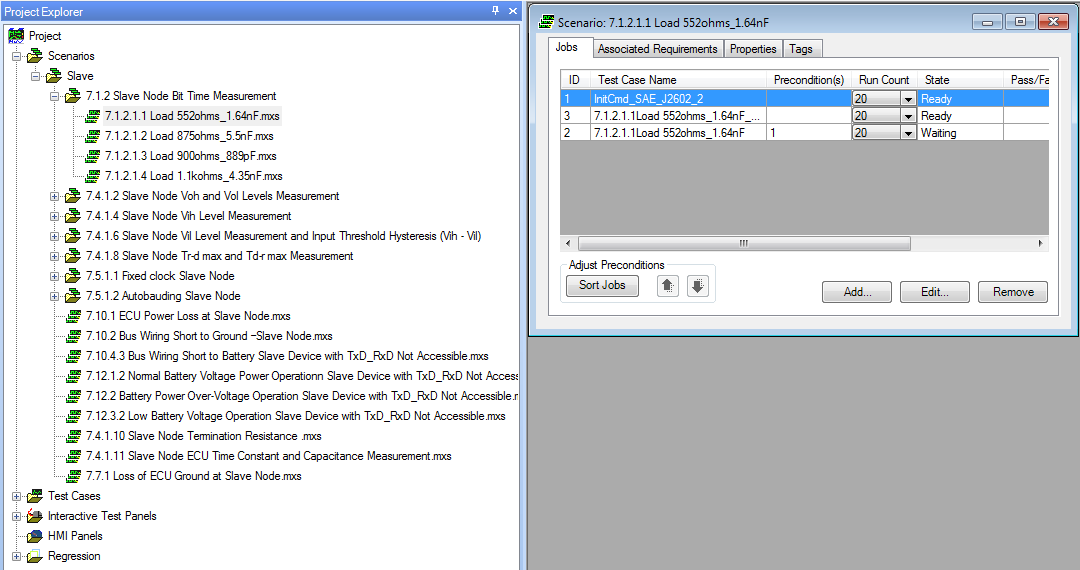

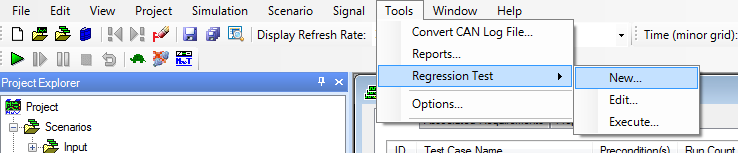

1.Open Mx‑VDev. 2.Select File-> Open->Project from the main menu. 3.Use the Open dialog to select the project file: MxPLT Sample Project Ford_LIN.mxp 4.Click Open. 5.Click Edit Harness ( 6.In Mx‑TransIt, click on the PLT Test Manager Transform to select it and display its Properties box. 7.Click the “Launch MxPLTConversionTool” Verb to open the tool. 8.Select the “TestCase Generation” tab to generate Scenarios and TestCases dynamically based on selected inputs. 9.Following are the inputs for the TestCase Generation tab of the Mx‑PLT tool. a.Select TestCase Definition File. Click the browse button ( b.Change the Baud Rate as per DUT type. c.Select the LIN Device Type. If the DUT type is slave, select Slave. If the DUT type is master, select Master. d.LIN Diagnostics. If the DUT supports the diagnostic messages, select “Supported.” If the DUT does not support diagnostic messages, select “Not Supported”. e.Enter a valid LIN Slave Specific ID. The MxPLT, acting as a master node, sends a header as specified here. The ECU responds with data bytes. This field is applicable for LIN Slave DUTs. It is not mandatory for LIN Master DUTs. f.Click the browse button ( 10.Click the Generate TestCases button to generate Scenarios and TestCases for a specific OEM. Close the Test Conversion Tool, but leave MxVDev running.
|
1.Open MxVDev. 2.Select File-> Open->Project from the main menu. 3.Use the Open dialog to select the project file: MxPLT Sample Project Ford_LIN.mxp 4.Click Open. 5.The generated Scenarios and TestCases are displayed in the Project Explorer: 6.Select Tools->Regression Test->New. 7.Click the Add button in the Regression Command File dialog: 8.Enter User Details (Optional) in the Test Info panel. Click Next. 9.Click Next in Regression Output Wizard. 10. Click Next in Distribution List. 11. Click Next in Execution Options. 12. In Scenario Query Builder, expand the tree for the Slave folder. Select a Scenario (for example: "7.1.2 Slave Node Bit Time Measurement.mxs") and click Next. 13. Click Finish to open the Save Regression Script dialog: 14. Save the Regression Script File (.mxreg). 15. Click the "Close and Run" button in the Regression Command File dialog: The Regression Test Progress window shows the progress and pass/fail information of the Regression Test for the selected Scenario. After completion of the Regression test, the report is automatically displayed. |
Test Name |
Test Description |
Observation |
---|---|---|
DLPL_LIN_03_001_7.5.1.1_UART Synchronization |
This test verifies the Sample Point of the DUT is within the specified range by shifting a dominant to recessive edge until the message is no longer received properly. |
|
7.5.1.1.1 Fixed clock Max Bit sample timing |
Fixed Clock Slave Node |
|
7.5.1.1.1.1Vbatt 12V_Load 875ohms_5.5nF |
Rload = 875ohms Cload = 5.5nF Start Bit Time = 70us Do Bit Time = 122us |
Acceptance Criteria:
Max_Sample_Point must be <= 63 μsec (10/16 bit times + 1.5%)
|
7.5.1.1.1.2Vbatt 12V_Load 900ohms_889pF |
Rload = 900ohms Cload = 889pF Start Bit Time = 70us Do Bit Time = 122us |
Acceptance Criteria:
Max_Sample_Point must be <= 63 μsec (10/16 bit times + 1.5%)
|
7.5.1.1.2.1Vbatt 12V_Load 875ohms_5.5nF |
Rload = 875ohms Cload = 5.5nF Start Bit Time=125us Do Bit Time = 67us |
Acceptance Criteria:
Min_Sample_Point must be >= 133 μsec (1 7/16 bit times - 1.5%)
|
7.5.1.1.2.2Vbatt 12V_Load 900ohms_889pF |
Rload = 900ohms Cload = 889pF Start Bit Time=125us Do Bit Time = 67us |
Acceptance Criteria:
Min_Sample_Point must be >= 133 μsec (1 7/16 bit times - 1.5%)
|
7.5.1.2.1 Autobauding Slave Node Max Bit Sample Timing |
Autobauding Slave Node |
|
7.5.1.2.1.1Vbatt 12V_Load 875ohms_5.5nF |
Rload = 875ohms Cload = 5.5nF Start Bit Time = 70us Do Bit Time = 122us |
Acceptance Criteria:
Max_Sample_Point must be <= 64 μsec (10/16 bit times + 2.0%)
|
7.5.1.2.1.2Vbatt 12V_Load 900ohms_889pF |
Rload = 900ohms Cload = 889pF Start Bit Time = 70us Do Bit Time = 122us |
Acceptance Criteria:
Max_Sample_Point must be <= 64 μsec (10/16 bit times + 2.0%)
|
7.5.1.2.2 Autobauding Slave Node Min Bit Sample Timing |
Min Bit Sample Timing Slave Node |
|
7.5.1.2.2.1Vbatt 12V_Load 875ohms_5.5nF |
Rload = 875ohms Cload = 5.5nF Start Bit Time=125us Do Bit Time = 67us |
Acceptance Criteria:
Min_Sample_Point must be >= 133 μsec (1 7/16 bit times – 2.0%)
|
7.5.1.2.2.2Vbatt 12V_Load 900ohms_889pF |
Rload = 900ohms Cload = 889pF Start Bit Time=125us Do Bit Time = 67us |
Min_Sample_Point must be >= 133 μsec (1 7/16 bit times – 2.0%) |
DLPL_LIN_06_002_5.5_ Slave Maximum Transmission Time |
The TResponse_Maximum value in which a slave node can complete its response shall be identified in its Node Capability File. In the event a value is not provided in the Node Capability File, the Master node shall presume a value of TResponse_Maximum as defined in the LIN 2.1 Protocol Specification.
|
|
5.5.2 Variation of Length of SYNCH BREAK LOW PHASE |
This test verifies that the DUT as slave recognises an ID request with different lengths of SYNCH BREAK LOW PHASE TSYNBRK. |
|
5.5.2.1TSYNBRK is TSYNBRK_MIN |
TSYNBRK= TSYNBRK_MIN TSYNDEL = TSYNDEL_MIN TH_Interbyte = 0 (TH_Interbyte is the interbyte space between sync field and identifier) |
Acceptance Criteria:
The DUT must answer the request.
|
5.5.2.2 TSYNBRK is TSYNBRK_MAX |
TSYNBRK = TSYNBRK_MAX TSYNDEL = TSYNDEL_MIN TH_Interbyte = 0 |
Acceptance Criteria:
The DUT must answer the request.
|
5.5.2.3 TSYNBRK is 20bits |
TSYNBRK = 20bits TSYNDEL = TSYNDEL_MIN TH_Interbyte = 0 |
Acceptance Criteria:
The DUT must answer the request.
|
5.5.4 Variation of Length of SYNCH BREAK DELIMITER |
This test verifies that the DUT as slave recognizes an ID request with different lengths of SYNCH BREAK DELIMITER TSYNDEL. |
|
5.5.4.1 TSYNDEL is TSYNDEL_MAX |
TSYNBRK = TSYNBRK_MIN TSYNDEL = TSYNDEL_MAX TH_Interbyte = 0 |
Acceptance Criteria:
The DUT must answer the request.
|
5.5.4.2 TSYNDEL is10bits |
TSYNBRK = TSYNBRK_MIN TSYNDEL = 10bits TH_Interbyte = 0 |
Acceptance Criteria:
The DUT must answer the request.
|
5.5.6 Variation of Length of Header |
This test verifies that the DUT as slave recognizes an ID request with different lengths of the Header THEADER. |
|
5.5.6.1 THEADER is THEADER_NOMINAL |
TSYNBRK = TSYNBRK_MIN TSYNDEL = TSYNDEL_MIN TH_Interbyte = 0 THEADER = THEADER_NOMINAL |
Acceptance Criteria:
The DUT must answer the request.
|
5.5.6.2 THEADER is THEADER_MAXIMIUM |
TSYNBRK = 19bits TSYNDEL = 2bits TH_Interbyte = 6bits THEADER = THEADER_MAXIMUM |
Acceptance Criteria:
The DUT must answer the request.
|
5.5.6.3 THEADER is 40bits |
TSYNBRK = 15bits TSYNDEL = 3bits TH_Interbyte = 2bits THEADER = 40bits |
Acceptance Criteria:
The DUT must answer the request.
|
5.5.6.4 TH_Interbyte is 13 bits |
TSYNBRK = TSYNBRK_MIN TSYNDEL = TSYNDEL_MIN TH_Interbyte = 13bits THEADER = THEADER_MAXIMUM |
Acceptance Criteria:
The DUT must answer the request.
|
5.5.8.1 Length of Frame |
This test verifies that the length of TFRAME_MAXIMUM is not exceeded by the DUT’s in-frame-response space and interbyte spaces. Header size = max Data Frame size = 8 SyncBreak length = 19bits SyncDelimiter length=8bits THInterbyte = 0 |
Acceptance Criteria:
The DUT must answer the request with TFRAME_NOMINAL + (THeader_Maximum – THeader_Nominal) ≤ TFrame ≤ TFRAME_MAXIMUM |
DLPL_LIN_07_001_7.2.1_Wakeup strategy |
Wakeup strategy
|
|
7.2.1.2 Wake-Up request to the Slave |
This test verifies the ability of the Slave node to receive a wake-up request and to process it upon reception |
|
7.2.1.2.1 Wake-Up request to the Slave_29us |
The Test Tool as Master sends a wakeup request for 29uS.
|
Acceptance Criteria:
DUT must not transmit any of its messages.
|
7.2.1.2.2 Wake-Up request to the Slave _250us |
The Test Tool as Master sends a wakeup request for 250uS.
|
Acceptance Criteria:
DUT must transmit the $3D response data. |
7.2.1.2.3 Wake-Up request to the Slave_1ms |
The Test Tool as Master sends a wakeup request for 1mS.
|
Acceptance Criteria:
DUT must transmit the $3D response data. |
7.2.1.2.4 Wake-Up request to the Slave_5ms |
The Test Tool as Master sends a wakeup request for 5mS.
|
Acceptance Criteria:
DUT must transmit the $3D response data. |
7.2.1.3 Transmit a Wake-Up Request |
This test verifies the ability of a slave node to transmit a wake-up request. This test is only applicable to slaves which have wake-up inputs that will generate a LIN bus wake-up.
Activate a local wake-up input in the DUT so that a wake-up is generated
|
Acceptance Criteria:
The wakeup pulse length must be 250us < t < 5mS
|
7.2.1.4 Repeat Wake-Up request when no response by Master |
This test verifies the ability of the slave node to resend the wake-up request when there is no response from a master after a wake-up request. This test is only applicable to slaves which have wake-up inputs that will generate a LIN bus wake-up. Activate a local input in the DUT that generates a Wake-up pulse on the LIN Bus.
|
Acceptance Criteria:
DUT must transmit the wake-up requests. 150ms < Twu1 < 300ms 1.5s < Twu2 < 3s After the transmission of the 6th Wake-up pulse monitor the bus for 4 more s to check whether the DUT transmits any more wake-up pulse. |
7.2.1.5 Wake-Up Request from Slave followed by a Frame Header from Master |
This test verifies the behavior of the slave on receiving the Frame Header from the Master for a Wake-Up request. This test is only applicable to slaves which have wake-up inputs that will generate a LIN bus wake-up. Activate a local wake-up input in the DUT
|
Acceptance Criteria:
DUT must transmit a Wake-Up request on the LIN bus.
|
DLPL_LIN_07_002_7.2.2_Timeout and sleep commands |
The master shall always issue a sleep command when power down of the bus is required, All slaves must implement both the timeout and sleep command.
|
|
7.2.2.3 Sleep Mode after Bus Idle |
This test verifies the ability of the slave node to enter the sleep mode when the bus is idle for more than 4 s. |
|
7.2.2.3.1 Sleep Mode after Bus Idle |
|
Acceptance Criteria:
DUT must go to the quiescent current level specified in the component specification within 60 s unless otherwise specified in the CTS.
|
7.2.2.3.2 Sleep Mode after Bus Idle |
|
Acceptance Criteria:
DUT must go to the quiescent current level specified in the component specification within 60 s unless otherwise specified in the CTS.
|
7.2.2.3.3 Sleep Mode after Bus Idle |
Ensure that there is no message traffic on the bus.
|
Acceptance Criteria:
DUT must go to the quiescent current level specified in the component specification within 60 s unless otherwise specified in the CTS.
|
7.2.2.4 Sleep Mode Entered with LIN Bus Shorted to Ground |
Sleep Mode Entered with LIN Bus Shorted to Ground (DUT as Slave) |
|
7.2.2.4.1 LIN Bus Shorted to Ground |
|
Acceptance Criteria:
DUT must go to the quiescent current level specified in the component specification within 60 s unless otherwise specified in the CTS
|
7.2.2.4.2 LIN Bus Shorted to Ground |
|
Acceptance Criteria:
DUT must go to the quiescent current level specified in the component specification within 60 s unless otherwise specified in the CTS
|
7.2.2.4.3 LIN Bus Shorted to Ground |
|
Acceptance Criteria:
DUT must go to the quiescent current level specified in the component specification within 60 s unless otherwise specified in the CTS
|
7.2.2.2 Receive Command Frame Sleep Mode Command |
This test verifies the ability of the slave node to receive a command frame. The command frame type 'Sleep Mode Command' is checked in this test, this frame is used to broadcast the sleep mode to all bus nodes. |
Acceptance Criteria:
The current drawn by the DUT must go to its specified quiescent current level within 10 sec unless otherwise specified in the component specification.
|
DLPL_LIN_15_(001 – 006 & 008 – 010)_5.4.1_SAE J2602 Status Byte |
All Slaves are required to report the J2602 Status byte and have stabilized the meaning of the APINFOx bits.
|
|
5.4.1.1CorruptParity |
Send a $3D Response with the ID Parity bits corrupted
|
Acceptance Criteria:
Status Byte returned by the DUT must be (111x xxxx).
|
5.4.1.2CorruptStopBit |
Send a slave specific command message ID and Data for the DUT and corrupt the Stop bit (transmit a dominant) of the last data byte in the frame.
|
Acceptance Criteria:
Status Byte returned by the DUT must be (110x xxxx).
|
5.4.1.3 CorruptChecksum |
Send a $3C Targeted Reset with a corrupted checksum to the DUT
|
Acceptance Criteria:
Status Byte returned by the DUT must be (101x xxxx).
|
5.4.1.4 CorruptSynByte |
Send a $3D Response with sync byte = x. Repeat the steps for x=1 to 255 |
Acceptance Criteria:
Status Byte returned by the DUT must be (100x xxxx) if the device has a fixed clock. Alternatively, if the device is performing autobauding and the SYNC byte was not $55, the Status Byte is ignored but a valid response shall be sent by the DUT..
|
5.4.1.5 CorruptNAD |
Send a $3D Response and corrupt bit 6 (send a dominant) of the NAD byte sent by the DUT.
|
Acceptance Criteria:
Status Byte returned by the DUT must be (100x xxxx).
|
5.4.1.6 SAE J2602 Status Byte |
Combination of all corruption(parity, checksum,NAD) except sync byte |
Acceptance Criteria:
Checking for the correct response. |
DLPL_LIN_06_003 Inter-byte space |
Each inter-byte space shall be in between 0 and 8 bit times. The response space shall be between 0 and 8 bit times. The total transmission time is the sum of the header, response space and the response shall be between TFrame_Minimum and TFrame_Maximum as defined in the LIN 2.1 Protocol Specification.
|
Acceptance Criteria:
The inter-byte space shall be less than the 764 us for 10.417kbps. |
DLPL_LIN_07_006 Wake Slave Local Event |
Generate a slave wake-up trigger and monitor the start-up timing on the LIN net using an oscilloscope or a Network Analyzer.
|
Acceptance Criteria:
The slave shall issue a wake-up within 50ms of the Local event.
|
DLPL_LIN_07_007 Wake Slave Network Event |
Wake-up the bus with and measure the timing between the first header and the first valid response from the slave using a Network Analyzer.
|
Acceptance Criteria:
The slave shall begin responding to the header with valid data within: 100mS for slaves that wake from local events or 250mS for slaves that wake from ignition or Buss traffic only.
|
DLPL_LIN_07_008 Slave Sends the First Response |
Power-up the bus with and measure the timing between the power on event and the first valid response from the slave using a Network Analyzer.
|
Acceptance Criteria:
The slave shall begin responding to the header with valid data within: 100mS for slaves that wake from local events or 250mS for slaves that wake from ignition or Buss traffic only.
|
DLPL_LIN_11_001_7.10.1 ECU Power Loss |
ECUs shall not interfere with normal communication among the remaining bus ECUs during a loss of power (or low voltage) condition. Upon return of power, normal operation shall resume without any operator intervention within a time specified in the "Wake-Up Timing" section. This test verifies the leakage current when the DUT loses battery is within the specified range under maximum and minimum supply voltage conditions.
|
|
7.10.1.1ECU Power Loss_Vbatt 8V |
Vecu = 8V |
Acceptance Criteria:
The measured current shall be less than Ileak batt specified in Table 6 of SAE J2602-1
|
7.10.1.2ECU Power Loss_Vbatt 18V |
Vecu = 18V |
Acceptance Criteria:
The measured current shall be less than Ileak batt specified in Table 6 of SAE J2602-1
|
DLPL_LIN_11_002_7.10.2 Bus Wiring Short to Ground |
Network data communications may be interrupted but there shall be no damage to any ECU when the bus is shorted to ground. A network impedance of less than 50 ohms between the bus and ground shall be considered a short to ground and continued communications are not guaranteed or required. Upon removal of the fault, normal operation shall resume without any operator intervention within 1 second.
|
|
7.10.2Bus Wiring Short to Ground_Vbatt 18V |
This test verifies the impedance of the DUT after the LIN bus is shorted to ground is within 1% of the impedance prior to the shorting event. |
Acceptance Criteria:
The resistance measured at the end of the test shall be within 1% of that measured at the start of the test.
|
DLPL_LIN_11_003_7.10.4 Bus wiring short to battery |
Network data communications may be interrupted but there shall be no damage to any device when the bus is shorted to positive battery less than 26.5 volts (Vbatt < 26.5 volts). A network impedance of less than 50 ohms between the bus and battery shall be considered a short and continued communications are not guaranteed or required. Upon removal of the fault, normal operation shall resume without any operator intervention within 1 second.
|
|
7.10.4.3.1Device with TxD_RxD Not Accessible |
This test verifies the characteristics of the output driver of the DUT after the LIN bus is shorted to battery are the same as they were prior to the shorting event. |
Acceptance Criteria: Compare the before and after dominant pulses. There must be no significant difference in rise time, fall time, output voltages or wave shape.
|
DLPL_LIN_11_005_7.4.1.6 Ground offset voltage |
DLPL_LIN_11_005 - Ground offset voltage Ground offset voltage limits at the ECU, specified as 0.1 x Vbatt ECU, must be maintained over the entire range of 8 < Vbatt ECU < 26.5 volts. Set VBatt to 12 volts. Apply a voltage supply of ± 1.2 V (± 0.1 V) |
Acceptance Criteria:
Communication according to the LDF schedule table shall continue without any errors.
|
DLPL_LIN_12_001_7.12.1 Normal Battery Voltage Power Operation Slave Device with TxD_RxD Not Accessible |
|
|
7.12.1.2.1.1Vbatt 8.5V_to_18V_Load 1kohms_1nF |
To check whether ECU is communicating at Vbatt 8.5V to 18V with Load 1kohms_1nF |
Acceptance Criteria: The Slave ECU shall respond to the $3D request over the voltage range of [8.5 to 18.0 V] |
7.12.1.2.1.2Vbatt 18V_to_8.5V_Load 1kohms_1nF |
To check whether ECU is communicating at Vbatt 18V to 8.5V with Load 1kohms_1nF |
Acceptance Criteria: The Slave ECU shall respond to the $3D request over the voltage range of [18.0 to 8.5 V] |
DLPL_LIN_12_002_7.12.2 Normal_Passive mode at high voltage |
|
|
7.12.2.2.1.1Device with TxD_RxD Not Accessible_Vbatt 18V_to_26.5V_Load 1kohms_1nF |
To measure r-d transition times and the output voltages for slave mode at Vbatt 18V_to_26.5V with Load 1kohms_1nF |
Acceptance Criteria: If the LIN pin is not recessive, the r-d transition times and the output voltages must meet the requirements specified in Table 37 of SAE J2602-2 document.
|
7.12.2.2.1.2Device with TxD_RxD Not Accessible_Vbatt 26.5V_to_18V_Load 1kohms_1nF |
To measure r-d transition times and the output voltages for slave mode at Vbatt 26.5V_to_18V with Load 1kohms_1nF |
Acceptance Criteria: If the LIN pin is not recessive, the r-d transition times and the output voltages must meet the requirements specified in Table 37 of SAE J2602-2 document.
|
DLPL_LIN_12_003_7.7.1 Leakage current limits |
|
|
7.7.1.1Loss of ECU Ground_8V |
To measure the leakage current when the DUT loses ground at Vbatt 8V |
Acceptance Criteria: The measured leakage current shall be less than Ileak gnd |
7.7.1.2Loss of ECU Ground_18V |
To measure the leakage current when the DUT loses ground at Vbatt 18V |
Acceptance Criteria: The measured leakage current shall be less than Ileak gnd |
DLPL_LIN_12_004_7.12.2 Over voltage resistability |
Same as DLPL_LIN_12_002_7.12.2 Normal_Passive mode at high voltage |
|
DLPL_LIN_12_005_7.12.3 Low Battery Voltage Operation Slave Device with TxD_RxD Not Accessible |
|
|
7.12.3.2.1.1Vbatt 0V_to_8.5V_Load 1kohms_1nF |
To measure r-d transition times and the output voltages for slave mode at Vbatt 0V_to_8.5V with Load 1kohms_1nF |
Acceptance Criteria: If the LIN pin is not recessive, the r-d transition times and the output voltages must meet the requirements specified in Table 37 of SAE J2602-2 document.
|
7.12.3.2.1.2Vbatt 8.5V_to_0V_Load 1kohms_1nF |
To measure r-d transition times and the output voltages for slave mode at Vbatt 8.5V_to_0V with Load 1kohms_1nF |
Acceptance Criteria: If the LIN pin is not recessive, the r-d transition times and the output voltages must meet the requirements specified in Table 37 of SAE J2602-2 document.
|
|
|
|
Test Name |
Test Description |
Observation |
---|---|---|
DLPL_LIN_06_001_5.5_Master Maximum Transmission Time |
Each frame transmission time must be within the range of TFrame_Nominal and TFrame_Maximum. The publisher of the frame must support a maximum frame transmission time of less than TFrame_Maximum. |
|
5.5.1 Master Maximum Transmission Time |
This test verifies that the DUT as Master transmits the correct length of the SYNCH BREAK LOW PHASE TSYNBRK as defined in the LIN specification. |
Acceptance Criteria:
TSYNBRK >=TSYNBRK_MIN
|
5.5.3 Length of SYNCH BREAK DELIMITER |
This test verifies that the DUT as Master transmits the correct length of the SYNCH BREAK DELIMITER TSYNDEL. |
Acceptance Criteria:
TSYNDEL >=TSYNDEL_MIN
|
5.5.5 Length of Header |
This test verifies that the DUT as Master transmits the correct length of the header THEADER. |
Acceptance Criteria:
(THEADER_NOMIINAL * 0.995) >=THEADER >=THEADER_MAXIMUM
|
5.5.8.2 Length of Frame |
This test verifies that the length of TFRAME_MAXIMUM is not exceeded by the DUT’s in-frame-response space and interbyte spaces. |
Acceptance Criteria: The DUT must send the slave response with TFRAME_NOMINAL + (THeader_Maximum – THeader_Nominal) ≤ TFrame ≤ TFRAME_MAXIMUM |
DLPL_LIN_07_001_7.2.1_Wakeup strategy |
Wakeup strategy
|
|
7.2.1.1 Wake-up Request to the Master |
This test verifies the ability of the Master node to receive a wake-up request and to process it upon reception. |
|
7.2.1.1.1 Wake-up Request to the Master_29us |
The Test Tool as slave sends a wakeup request for 29uS.
|
Acceptance Criteria:
The DUT must not wake-up and transmit its messages.
|
7.2.1.1.2 Wake-up Request to the Master_250us |
The Test Tool as slave sends a wakeup request for 250uS.
|
Acceptance Criteria:
The DUT must receive the wake-up request and initialize the start up routine. The DUT must send out the frame headers to find the root cause for the request between 100 and 110 ms of the dominant to recessive edge of the wake-up. |
7.2.1.1.3 Wake-up Request to the Master_1ms |
The Test Tool as slave sends a wakeup request for 1mS.
|
Acceptance Criteria:
The DUT must receive the wake-up request and initialize the start up routine. The DUT must send out the frame headers to find the root cause for the request between 100 and 110 ms of the dominant to recessive edge of the wake-up. |
7.2.1.1.4 Wake-up Request to the Master_5ms |
The Test Tool as slave sends a wakeup request for 5mS.
|
Acceptance Criteria:
The DUT must receive the wake-up request and initialize the start up routine. The DUT must send out the frame headers to find the root cause for the request between 100 and 110 ms of the dominant to recessive edge of the wake-up. |
7.2.1.3 Transmit a Wake-Up Request |
This test verifies the ability of a slave node to transmit a wake-up request. |
Acceptance Criteria:
The wakeup pulse length must be 250us < t < 5mS
|
DLPL_LIN_07_002_7.2.2 Timeout and sleep commands |
This test verifies the ability of the Master node to send command frames; the “Sleep Mode Command” is used for this testing. |
|
7.2.2.1Send Command Frame Sleep Mode Command |
|
Acceptance Criteria: The DUT must send the frame without failure and the first data byte must be 0x00. The DUT must not send any more messages. |
DLPL_LIN_07_003 Wake Master Local Event |
Verify that the master sends the first header 100ms after the detection of a local event.
|
Acceptance Criteria:
The master must transmit the first header within 100ms of a clean ignition signal |
DLPL_LIN_07_004 Wake Master Network Event |
Verify that the master sends the first header 130ms after the detection of a Bus wakeup Symbol. Only applies to LIN Buses where the slave can wake the master.
|
Acceptance Criteria:
The measured delay must be <= 130mS |
DLPL_LIN_07_005 Power On Master |
Connect the power to the bus and monitor how it wakes from a power on event. |
Acceptance Criteria:
The first master header shall be transmitted within 250ms of a clean battery signal and all slaves shall be responding after 100ms from the first header. |
DLPL_LIN_11_001_7.10.1 ECU Power Loss |
This test verifies the leakage current when the DUT loses battery is within the specified range under maximum and minimum supply voltage conditions. |
|
7.10.1.1ECU Power Loss_Vbatt 8V |
Vecu = 8V
|
Acceptance Criteria:
The measured current shall be less than Ileak batt specified in Table 6 of SAE J2602-1 |
7.10.1.2ECU Power Loss_Vbatt 18V |
Vecu = 18V
|
Acceptance Criteria:
The measured current shall be less than Ileak batt specified in Table 6 of SAE J2602-1
|
DLPL_LIN_11_002_7.10.2 Bus Wiring Short to Ground |
Network data communications may be interrupted but there shall be no damage to any ECU when the bus is shorted to ground. A network impedance of less than 50 ohms between the bus and ground shall be considered a short to ground and continued communications are not guaranteed or required. Upon removal of the fault, normal operation shall resume without any operator intervention within 1 second.
|
|
7.10.2Bus Wiring Short to Ground 18V |
This test verifies the impedance of the DUT after the LIN bus is shorted to ground is within 1% of the impedance prior to the shorting event. |
Acceptance Criteria:
The resistance measured at the end of the test shall be within 1% of that measured at the start of the test.
|
DLPL_LIN_11_003_7.10.4 Bus wiring short to battery |
Network data communications may be interrupted but there shall be no damage to any device when the bus is shorted to positive battery less than 26.5 volts (Vbatt < 26.5 volts). A network impedance of less than 50 ohms between the bus and battery shall be considered a short and continued communications are not guaranteed or required. Upon removal of the fault, normal operation shall resume without any operator intervention within 1 second.
|
|
7.10.4.3.1TxD_RxD not Accessible |
This test verifies the characteristics of the output driver of the DUT after the LIN bus is shorted to battery are the same as they were prior to the shorting event. |
Acceptance Criteria: Compare the before and after dominant pulses. There must be no significant difference in rise time, fall time, output voltages or wave shape.
|
DLPL_LIN_11_005_7.4.1.5 Ground Offset Voltage |
DLPL_LIN_11_005 - Ground offset voltage Ground offset voltage limits at the ECU, specified as 0.1 x Vbatt ECU, must be maintained over the entire range of 8 < Vbatt ECU < 26.5 volts. Set VBatt to 12 volts. Apply a voltage supply of ± 1.2 V (± 0.1 V) |
Acceptance Criteria:
Communication according to the LDF schedule table shall continue without any errors.
|
DLPL_LIN_12_001_7.12.1 Normal Battery Voltage Power Operationn Slave Device with TxD_RxD Not Accessible |
MASTER NORMAL BATTERY VOLTAGE OPERATING RANGE WITH TXD/RXD NOT ACCESSIBLE This test verifies the operating voltage range of the DUT. |
|
7.12.1.2.2.1Vbatt 8.5V_to_18V_Load 1kohms_1nF |
Vecu Range =8.5V-18V |
Acceptance Criteria:
The Master ECU shall respond to the Wake-up Request over the voltage range of [8.5 to 18.0 V]
|
7.12.1.2.2.2Vbatt 18V_to_8.5V_Load 1kohms_1nF |
Vecu Range =18V-8.5V |
Acceptance Criteria:
The Master ECU shall respond to the Wake-up Request over the voltage range of [18.0 to 8.5 V]
|
DLPL_LIN_12_003_7.7.1 Leakage current limits |
This test verifies the leakage current when the DUT loses ground is within the specified range under maximum and minimum supply voltage conditions. |
|
7.7.1.1Loss of ECU Ground_8V |
Vecu = 8V |
Acceptance Criteria: The measured leakage current shall be less than Ileak gnd specified in Table 6 of J2602-1 .
|
7.7.1.2Loss of ECU Ground_18V |
Vecu = 18V |
Acceptance Criteria:
The measured leakage current shall be less than Ileak gnd specified in Table 6 of J2602-1 .
|
DLPL_LIN_12_004_7.12.2 Over voltage resistability |
This test verifies the DUT either operates within the specification or goes into the passive mode when the supply voltage is between 18 and 26.5V. |
|
7.12.2.2.2.1Device with TxD_RxD Not Accessible_Vbatt 18V_to_26.5V_Load 20kohms_1nF |
Vecu Range =18V-26.5V |
Acceptance Criteria:
If the LIN pin is not recessive, the r-d transition times and the output voltages must meet the requirements specified in Table 37 of SAE J2602-2 document.
|
7.12.2.2.2.2Vbatt 26.5V_to_18V_Load 20kohms_1nF |
Vecu Range =26.5V-18V |
Acceptance Criteria:
If the LIN pin is not recessive, the r-d transition times and the output voltages must meet the requirements specified in Table 37 of SAE J2602-2 document.
|
DLPL_LIN_12_005_7.12.3 Low Battery Voltage Operation Slave Device with TxD_RxD Not Accessible |
Low battery voltage operation. |
|
7.12.3.2.1.1Vbatt 0V_to_8.5V_Load 1kohms_1nF |
Vecu Range =0V-8.5V |
Acceptance Criteria:
If the LIN pin is not recessive, the r-d transition times and the output voltages must meet the requirements specified in Table 37 of SAE J2602-2 document.
|
7.12.3.2.1.2Vbatt 8.5V_to_0V_Load 1kohms_1nF |
Vecu Range =8.5V-0V |
Acceptance Criteria:
If the LIN pin is not recessive, the r-d transition times and the output voltages must meet the requirements specified in Table 37 of SAE J2602-2 document.
|
