MxSuite™ Files and Folders

Relative File Paths

Saving fully qualified paths to referenced files can be problematic in a file-based application.  The internal references to files are easily broken when the files are moved or copied.  By having a standard strategy for storing paths in the MxSuite, you can copy and move whole projects or parts of projects with confidence.  The MxSuite strategy outlined below is simple and provides a lot of flexibility:

Consider two files, F1 and F2, where F1 has to store information on the location of F2, so that F2's absolute path in the file system can be determined. The following defines how to store that information:

F1 stores the information as a relative path from F1's own location in the file system to that of F2.

The one exception is when the referenced file (F2) is on another drive. In that case, an absolute path is stored.

Project Files

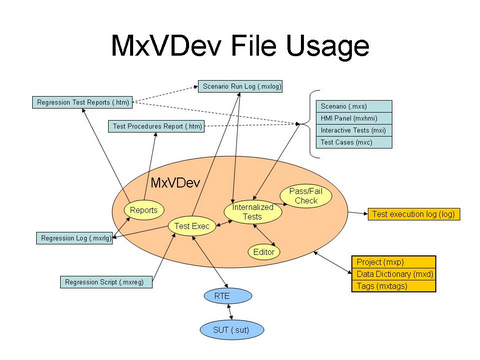

MxVDev files and file extensions are described below.

Click to expand.

Click to expand.

File Extension

File Type

Format

Purpose

Archive Strategy

mxc

TestCase

XML

Stores the MxVDev TestCase information

S

mxs

Scenario

XML

Stores the MxVDev Scenario information

S

mxreg

Regression Script File

XML

This command file is created by the Regression Wizard.

S

mxi

Interactive Test Panel

XML

Stores the MxVDev Interactive Test Panel information

S

mxe

Data File

Binary

Used to store data for emulating EEPROM for Software-in-the-Loop testing

S

VMC files

System Under Test

C files

Files used to build the SIL MxVMC.  This includes Visual C project files, .c, .h, .lib, .sln, .dsp, .dsw, .vcproj files.

H

mxp

MxVDev Project

Text

Stores all the project settings

E

mxd

Signal Dictionary

XML

The MxVDev Signal Dictionary is stored in this file

(In release 3.36.17.26140 and earlier, the Signal Dictionary was a Microsoft Access database.)

E

mxenum

Enums file

XML

Stores Enum sets

E

mxtags

Tags

XML

All the Group and Tag entries that are created under Project Settings‑>Tags are stored in this file

E

mxcfg

Configuration

XML

Stores information about configuration of the Virtual ECUs and interconnections such as CAN buses

E

mxrlg

Regression log

XML

This file is generated when a Regression Test sequence is executed.  It contains the results of the Regression Test, and is used to build the regression test report.

R

mxrlgh

Regression log header

XML

This file is generated before a Regression Test sequence is executed.  It contains the header information for the Regression Test, and is used to build the regression test report.

R

mxsrlg

Single Scenario regression log

XML

Contains the Regression Test results for one Scenario. It is used to build the regression test report. The file is stored in the .mxout folder for the Scenario.

R

mxlog

Scenario Log

XML

Used to log the SUT response data that is generated during the execution of a Scenario.  It has the same name as the Scenario, but with .mxlog extension.  See Project Settings–Logging. If you double-click this file, the Scenario, along with its jobs, is loaded into MxVDev and all the results are displayed as if the Scenario had just run.

R

mxcmd

Scenario command log

XML

Used to log the stimulus data that is generated during the execution of a Scenario.  It has the same name as the Scenario, but with .mxcmd extension.  See Project Settings–Logging.

R

mxevt

Scenario event log

XML

Contains events that occur when a Scenario runs

R

xml

Report files

XML

All reports are generated in XML. See Reports.

R

mxo

Options

Text

Used for user options that do not affect the outcome of the tests. TestCase display options are saved in this file.

G

mxa

Adapter

XML

Defines connections between MxVDev and mxform. There is one file for Response connections and another for Stimulus.

G

sut

System Under Test

Windows DLL

This file is the executable code that we are testing. It is the product of a build of the MSVC project.  You should ensure you can recreate this file in a build process.

G

log

Log file

Text

Used to log significant MxSuite events and any issues/errors.

Project log - Logs normal events related to a project. It is located in the project folder. The file name has the format <project-name>.log. For example: MxV.log

Regression.log - Logs execution of a regression run - Located in the Regression folder

To view the following log files, select Help->View Log Files from the main menu in MxVDev or MxTransIt:

MxVGui.log and MxVGuiErr.log - Log errors detected in the main MxVDev application

MxRte.log - Logs errors detected in the MxVDev Run-Time Engine

MxTransIt.log

For more information, see Project Settings–Logging.

The MxServe Manager also uses log files, see MxServe Log Files.

Installation errors are logged in a version-specific log file in this format:

MicroMax_MxSuite_<version>_<date and time>.log

For more information, see Logging—Installation Log File.

G

layout.xml

GUI layout file

XML

Stores layout information about how to present the dockable panels, such as the Transition List, Project Explorer and Notification Window.

G

mxform

Harness or Subsystem file

XML

Stores information about the project's Transforms.  It includes information about connectivity and Signal Dictionary information about I/O ports. It may include code from C# Snippet Transforms. Subsystems are stored in these files.

H

MxVUserSettings.xml

User Settings

XML

Stores user-specific information. This file is normally stored in C:\Users\<username>\AppData\Roaming\MicroMax\MxVUserSettings.xml. This file includes recent projects and the server list created by the MxServe Monitor and the MxV License Manager.

G

Archive Strategy

When it comes to choosing which files to archive, the table below provides a starting point.

S

Source

You must archive these files.  These files (if used in your project) are required to recreate/re-execute a test.

E

Environment

You must archive these files.  These are used to create/configure the MxVDev environment.

H

Harness

You must archive these files.  These files are needed to recreate the test harness.  You will not be able to re-execute your tests if you cannot build the harness.

R

Result/Report

If all source files are archived and put under version control then there is no need to archive every set of results and report files.  For major customer releases it is advisable to check these files into to your archive.

G

Generated

There is no need to put these files under version control.  They are either generated automatically or easily recreated by the user.

Project Folders

The following folders are created when you create a new MxVDev project:

HMI folder

Regression folder

ScenariosAndTestCases folder

SUT folder

Transforms folder

The folders are used as follows:

HMI

Folder that stores HMI panels that you create (.mxhmi).  It includes a subfolder that stores image files for the panels.

MxVDev

This folder contains all project files related to MxVDev. It contains the folders listed above and the following files:

Project File (.mxp)

MxVDev Log File

MxVDev Signal Dictionary (.mxd)

.mxo

.mxtags

Layout.xml

SUT

SIL - Files related to building the MxVMC, the Virtual MicroController are stored in this location.

The Microsoft Visual C++ files that are used to build the System Under Test.  (You only need one MSVC project, but you could easily have more than one.)

SUT\MxVHarness

This folder contains the files that are used when linking user code to the MxVMC.  It typically contains:

AppIF.c -  This file is the primary interface file between your User Code and the MxVMC

If you create any other files for your harness, they ought to go in this folder.

SUT\Source

When you create a new MxVDev project, if you select Virtual MicroController and check 'Include a sample application' then the sample application is placed in this folder.

ScenariosAndTestCases

This is the default location where you put all your TestCases and Scenarios.  You should organize your test cases and scenarios by using naming conventions and creating subfolders in this folder.  This folder contains:

TestCase Files

Interactive Test Panel files

Scenario Files

Scenario Log files

mxout

The <Scenario name>.mxout subfolder, inside the ScenariosAndTestCases folder, is used for files produced when a Scenario is run.

Regression

This folder is used to store files related to Regression Testing.  Here you find:

The Regression Job Files (.mxreg) that you create

Folders containing the full results of regression tests that you run

Regression\Regression<date><time>

This folder stores a copy of the entire project at the time that the regression was run, and the results of the Regression run.  Key files you will find in this folder are:

Report.RegResults.xml - The front page of the regression report

Regression.mxrlg - An XML file storing the results of the regression run

Transforms

Typically the mxform file and Transforms that you use on your project are stored in this location, but they may be stored elsewhere. See Transform File Locations.
