The Labsat Transform connects to a Labsat device. LabSat by RaceLogic is a GPS simulator, which gives you the ability to record and replay real GPS RF data.
1.Use the Toolbox to create the Transform structure shown below. 2.In the Properties Box for the Labsat Transform, set the Media Type to USB.
|
1.In MxVDev, Create a TestCase and use the Pick Signals dialog to add the LabSatCommand Signal to it. 2.Insert a Transition on the Signal. The LabSat command is a message Signal. For more information, see Editing Test Patterns. 3.When the Add Transition dialog is displayed, select Play:
4.Left-click in the FileName row and Value column of the grid:
The LabSatFileList is displayed:

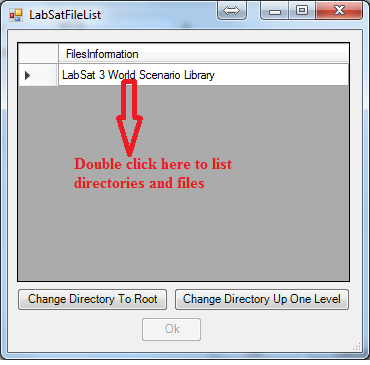

5.Double-click on the directory name to list its contents:
The file list is updated as shown here:
6.Use the button at the bottom of the dialog to browse to the required file. For example: LabSat 3 Wold Scenario Library->USA->Dynamic->GPS2BIT_USA_Dyn
7.Select the required file and click OK. The file information is displayed as shown here:
8.Click OK to add the transition to the Signal.
|
